Switching Rack DI Box
ff

ee
SDI_front panel photo

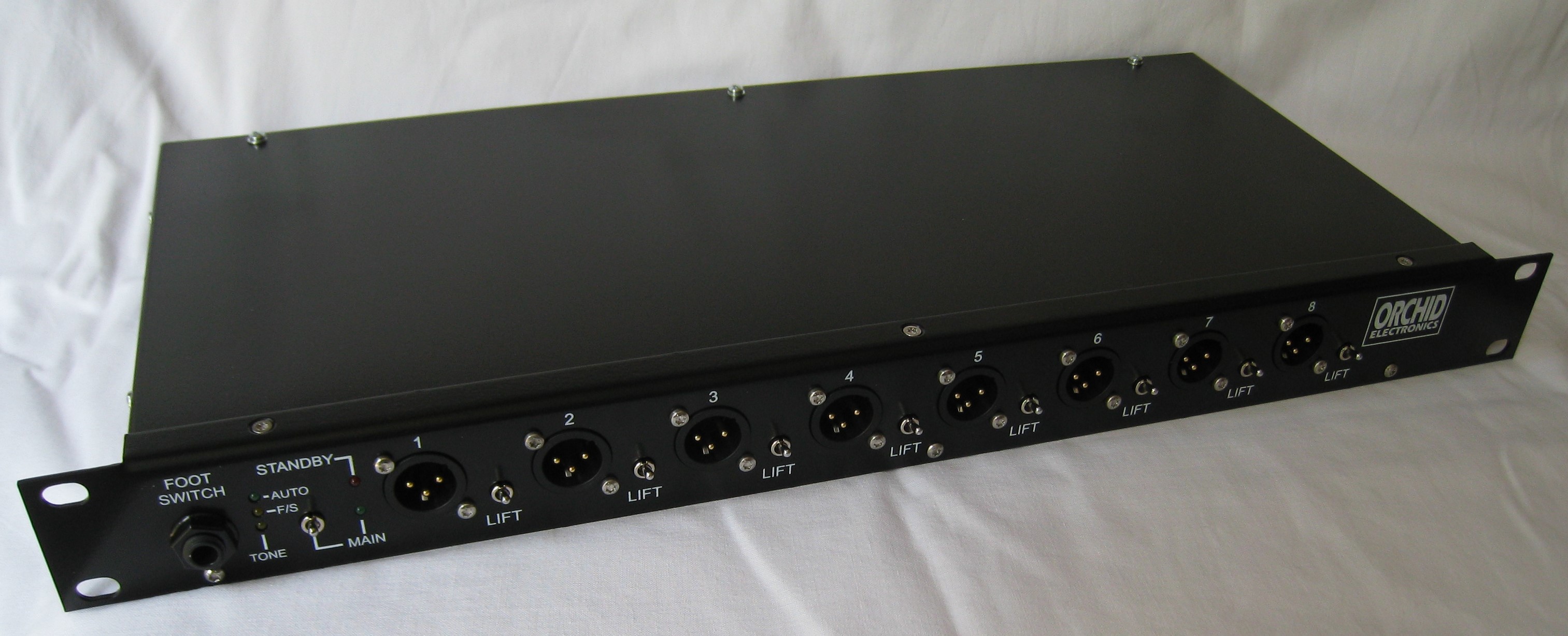

SDI_rack case view


Designed to be used with digital playback machines for backing track use when failure cannot be tolerated. Two synchronised players are connected to this unit - which will change over automatically if the main machine output should fail.

Units can be connected together if further channels are required - these will all be controlled and switched together. There are no limits to the number that can be linked together.

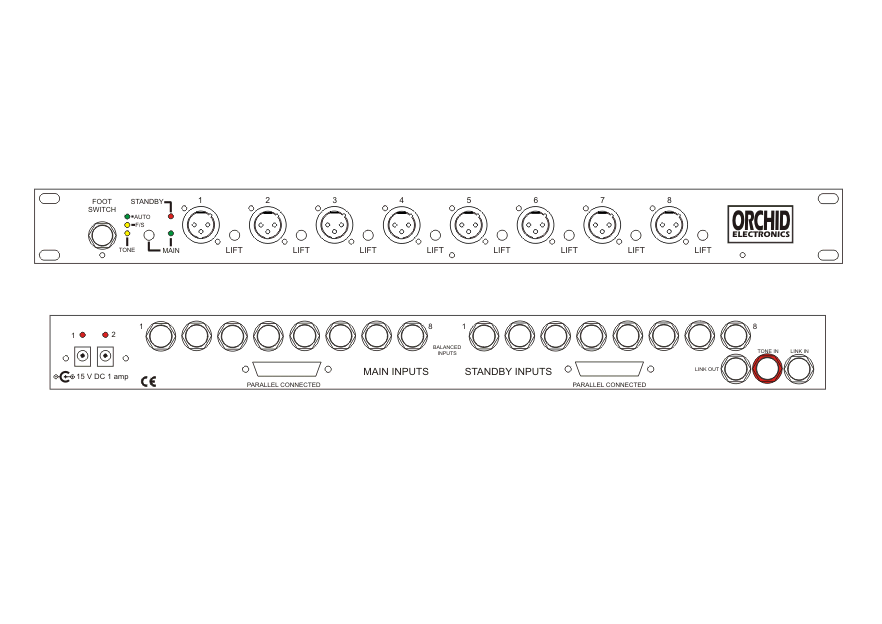

SDI_Front and rear panel

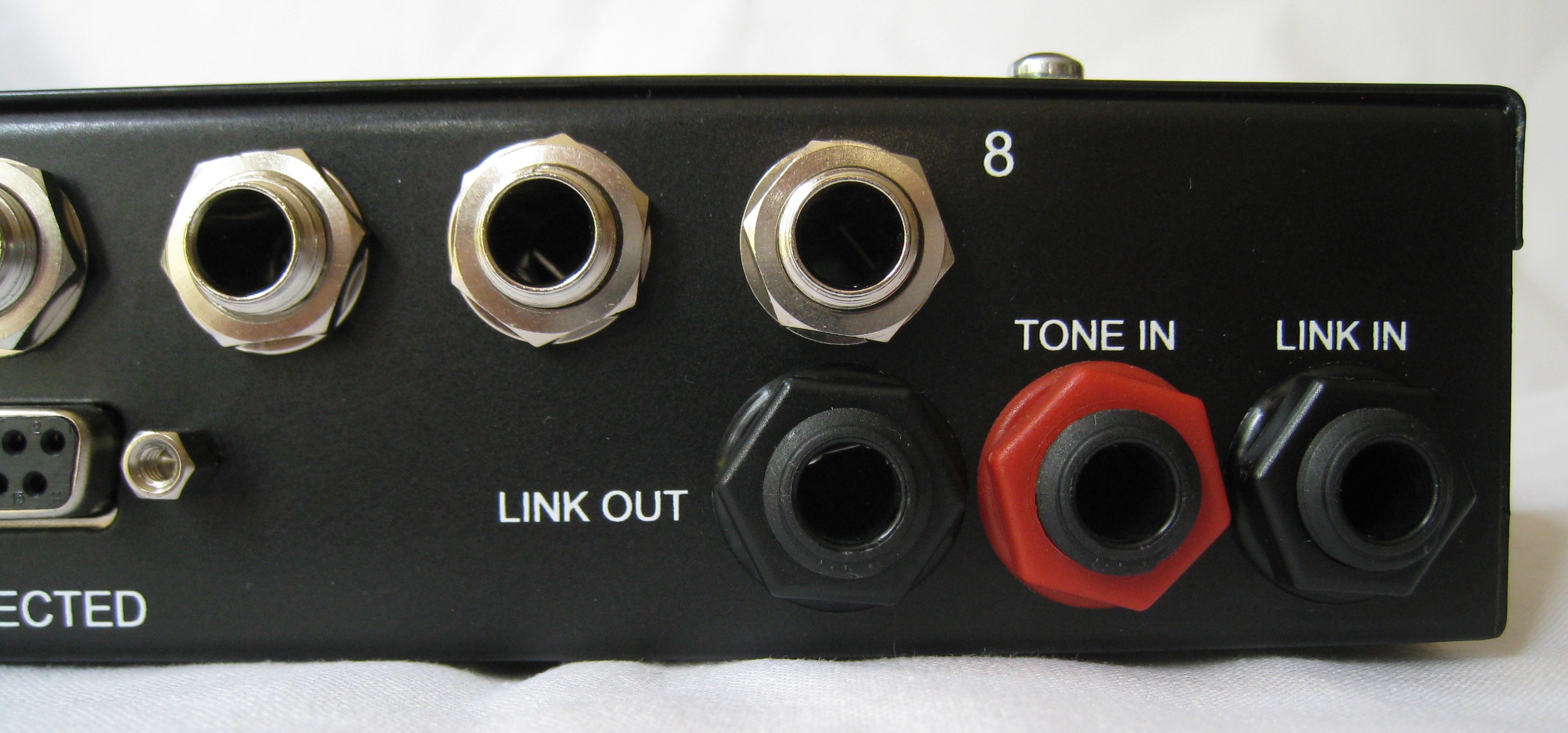

SDI_RH rear view

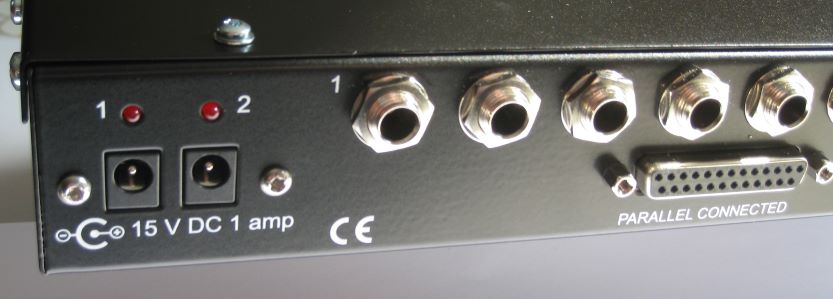

SDI_LH rear panel photo

·
Rear panel balanced TRS jack sockets, with parallel connected 25 way 'D' sub connector
·
Jack socket for connection of main machine monitor tone on rear panel
·
Link in and out jack sockets to enable further  units to be connected if more than 8 channels are required
·
External universal power supply - can be used anywhere in the world - without adjustment - two PSU's can be connected if required
·
Main and standby machines can be switched manually from the front panel, or with a footswitch if required.
·
1U rack case (200mm deep) with black painted finish with white screen printed legends
· Weight 2.9kg



  Switching DI front and rear panel drawing.pdf

  Switching DI rear panel connection drawing.pdf

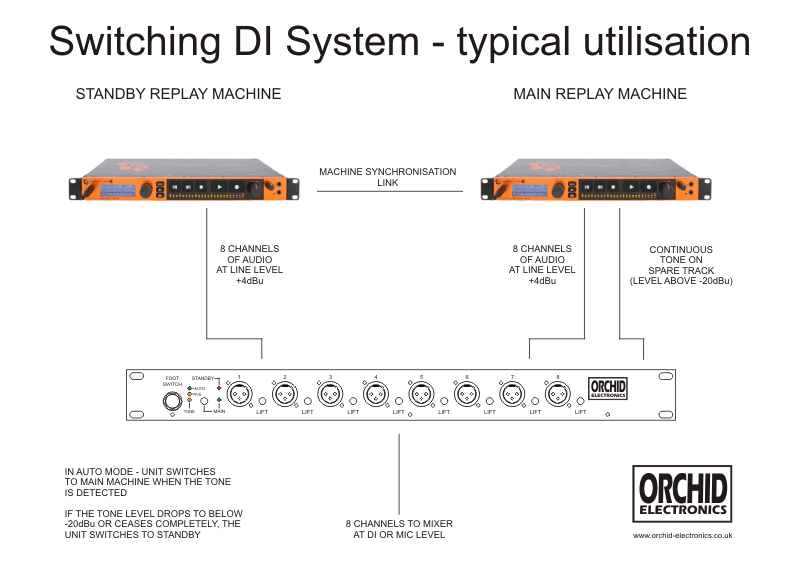

Switching DI Utilisation

Switching DI utilisation 2022.pdf

If manual control of the switching is required - the front panel toggle switch can be used, or foot switches with LED indication of the status possible. These should be easy to build yourself - or they can be obtained from Orchid Electronics if required.

Download foot switch control drawing.pdf



£750 including VAT and UK delivery - for export - UK VAT is not payable, so the price is £625 plus delivery at actual cost
